Reelful

Application Areas
Automobil, Lebensmittel, Chemie, Bau, Elektrik, Elektronik, Gießerei, Verpackung, Holz, Textil, Mechanik, Keramik, Weißwaren, Tabak, Kautschuk, Kautschuk

Reelful Download Digital Catalog

  Bobbinful S Bobbinful M Bobbinful L
Model Forceful Forceful Powerful
Weight Capacity / kg 0-100 kg 100-250 kg 100-450 kg
Max. Radius / mm 3000 2500 2500
Vertical Lift / mm 2000 1700 1600
Pressure 0,7-0,8 MPa 0,7-0,8 MPa 0,7-0,8 MPa
Air Consumption 140 nl/min 140 nl/min 270 nl/min

* Marked dimensions may vary depending on customer needs.

MOUNTING OPTIONS

Reelful

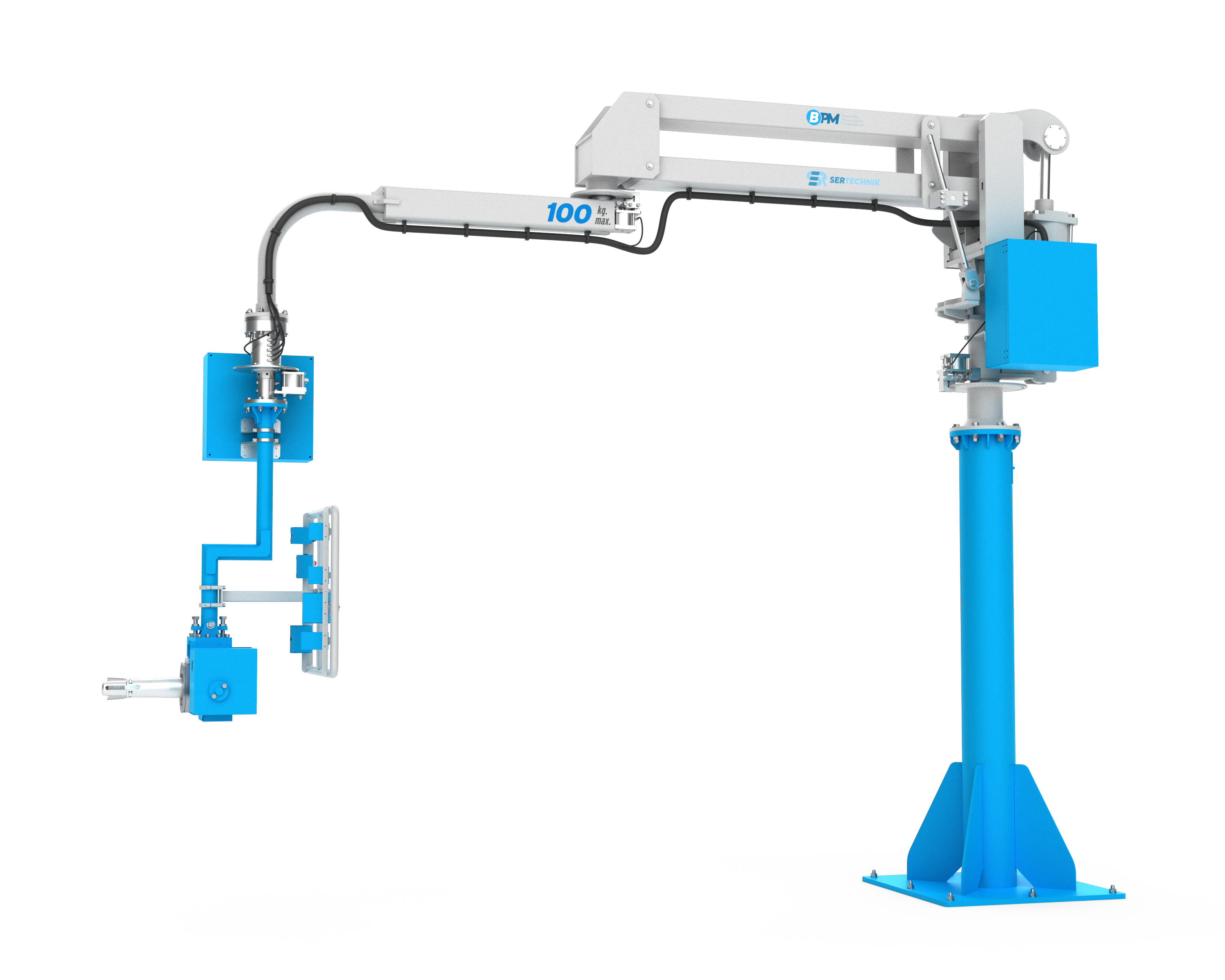

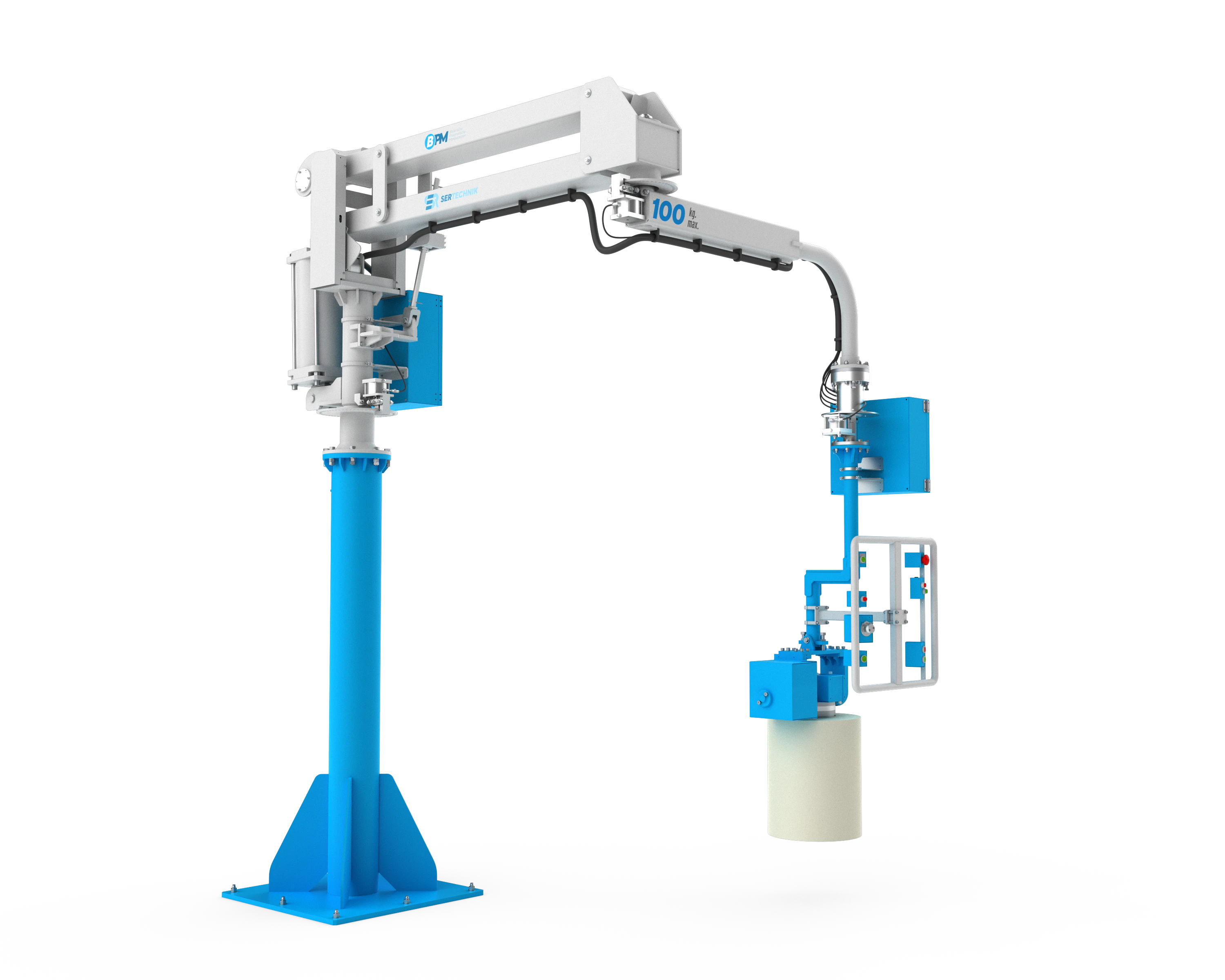

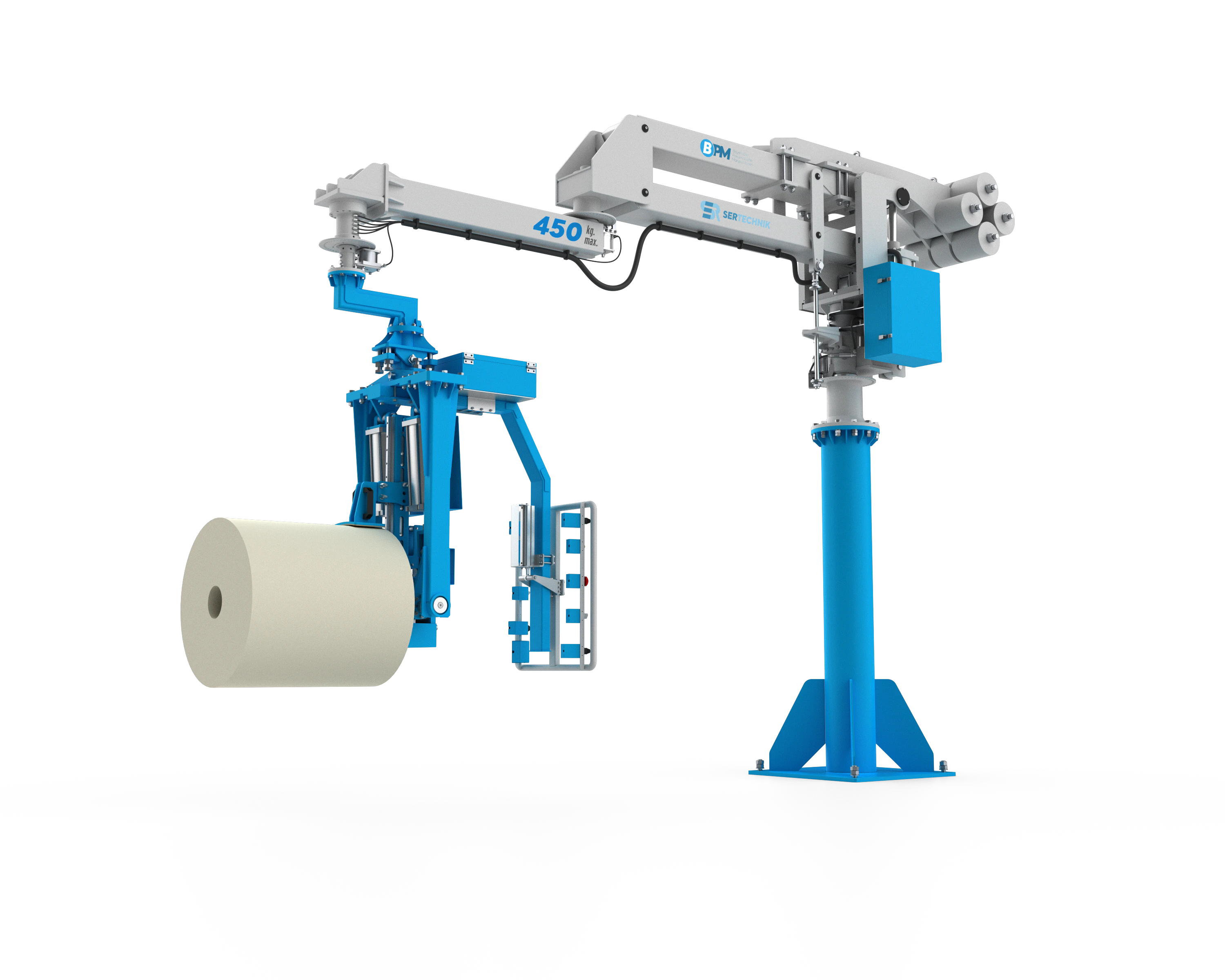

Column Mounted SY

Reelful

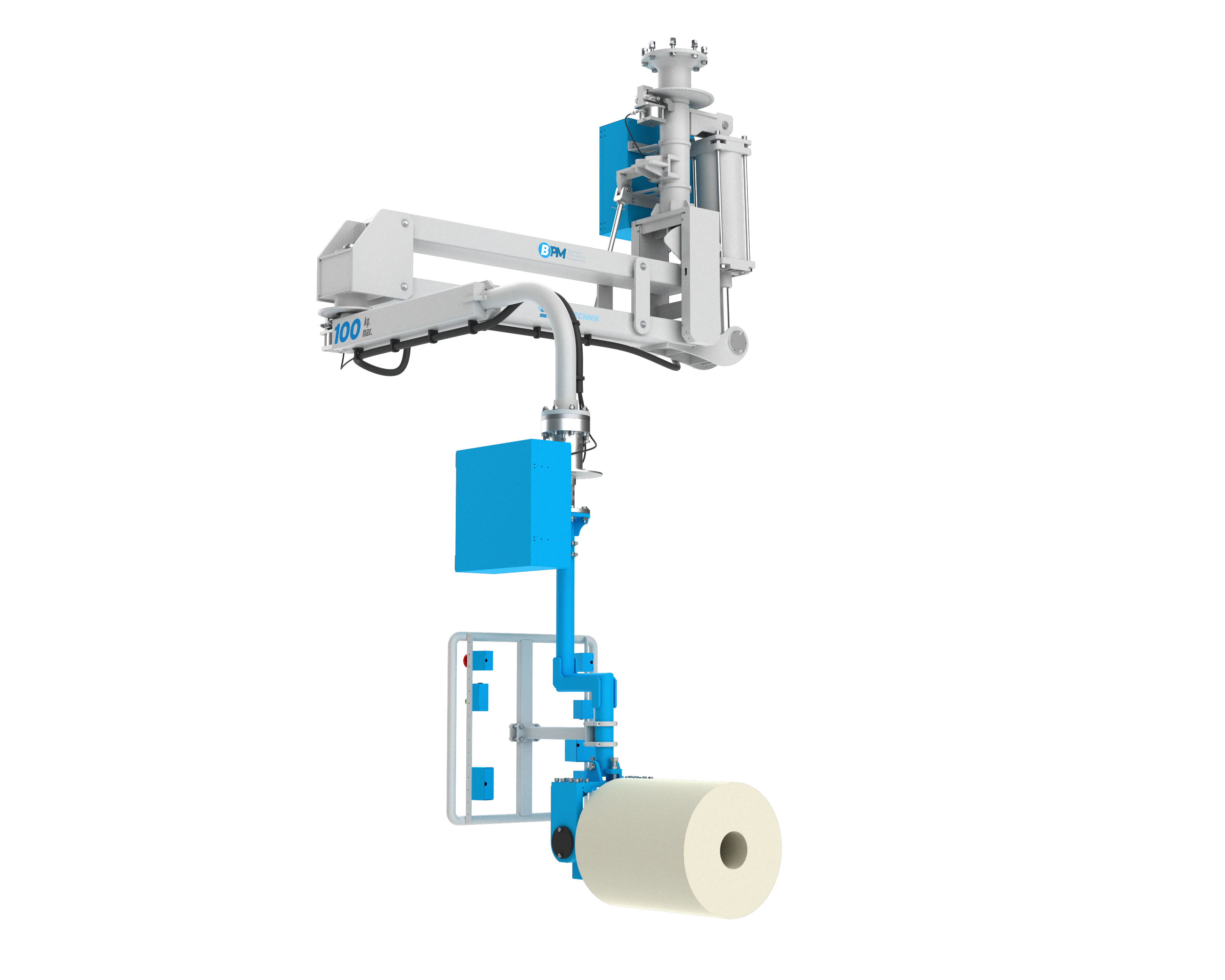

Overhead Mounted GT

Reelful

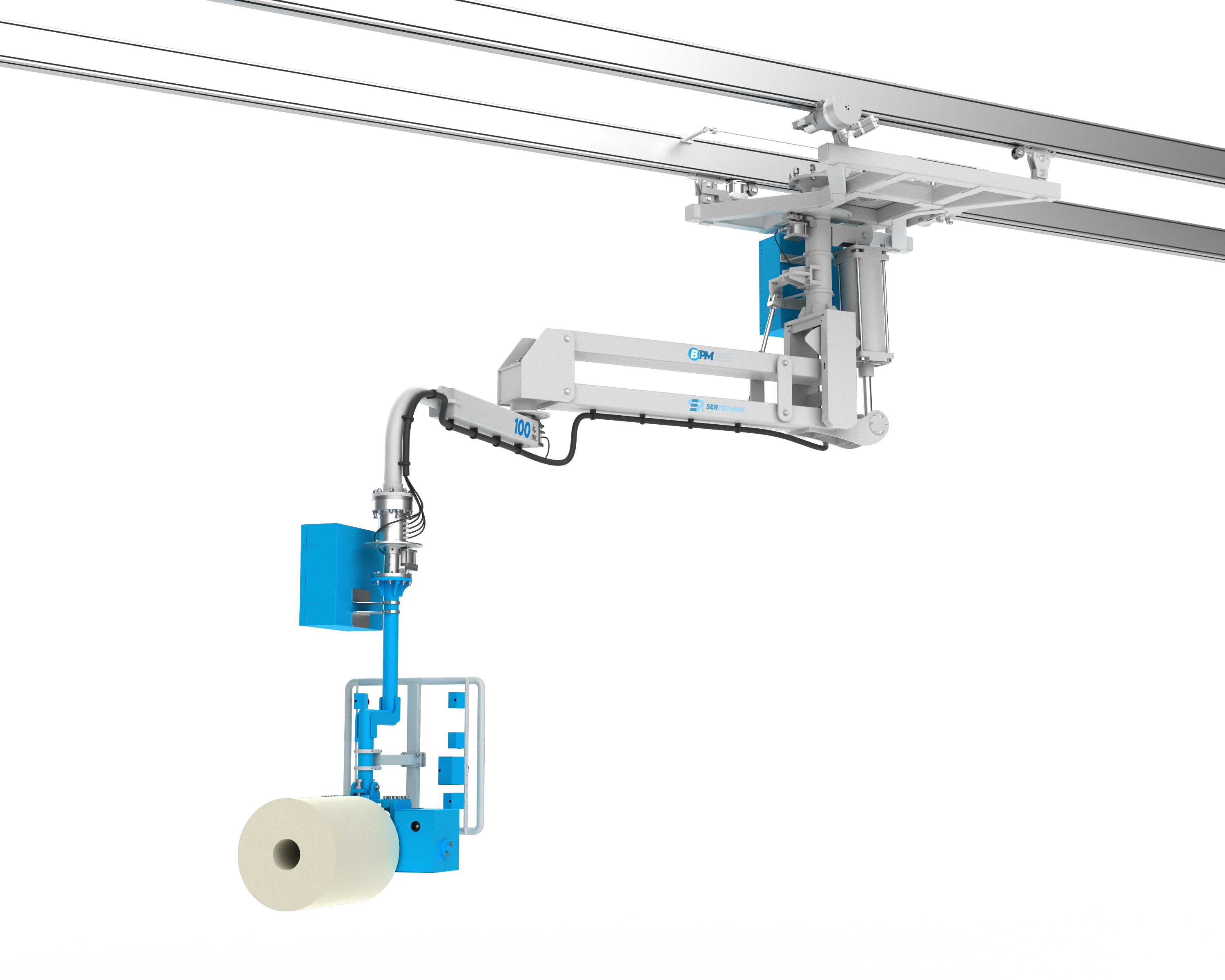

Overhead Trolley Mounted STA
